| The X. Y& Z axis utilizes AC servo motor. Multi-cavities machining, ORBIT-CUT machining & Helix machining. A.T.C. (Automatic Tool change) & C-axis machining available. The Circle Angle of Sparking is lower than 0.02mm. The best surface roughness (Ra) is better than 0.1 µm. Multi-side ORBIT-CUT machining for X, Y & Z axis High speed and long distance jumping. Special Rib shape machining function. |
|
Specification
|

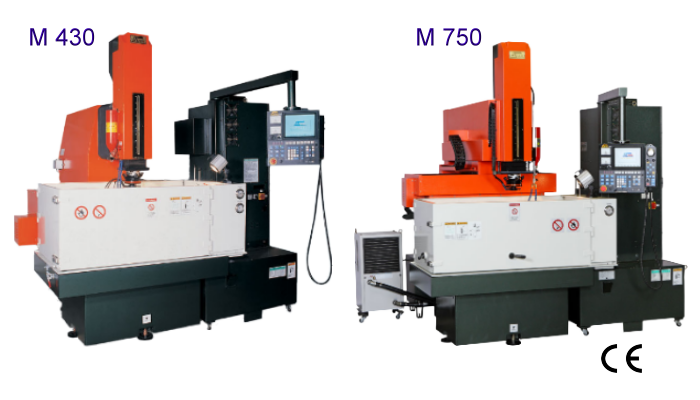

M 430
|
M 750
|
| X, Y-Travel |
400 x 300 mm
|
700 x 500 mm
|
| Z-Travel |
300 mm
|
450 mm
|
| Table Dimension |
840 x 520 mm
|
840 x 520 mm
|
| Work Tank Dimension |
1200 x 660 x 410 mm
|
1380 x 790 x 460mm
|
| Max. Table-Quill Distance |
650 mm
|
700mm
|
| Max. Electrode Weight |
60 kgs
|
100 kgs
|
| Max. Table Loading |
4200 kgs
|
5200 kgs
|
| Dielectric Tank Capacity |
400 litre
|
400 or 600 litre
|
| Filters |
3 PCS
|
3 PCS
|
| Machine Weight |
2700+650 kgs
|
3200+650 kgs
|
| Machine Height |
2280 mm
|
2520 mm
|
| Ground Area |  |
 |
| Nominal Current |
60A / 5A, 90A / 5A, 120A / 5A
|
| Input Voltage |
220 / 380 / 415 / 440V
|
| Connected Rating |
7KVA / 10KVA / 13KVA
|
| Max. Stock Removal Rate |
400 / 600 / 800mm³/min
|
| Best Surface Roughness |
Ra ≦ 0.1μm
|
| Best Electrode Wear Rate |
< 0.2% ( specific equip.< 0.1%)
|
|
Standard accessories
|
Additional Equipment
|
| Precision Electrode Clamps | ATC (Auto Tool Change) |
| Piezoelectric Light | C-Axis |
| Work Fastening Tool Kit | “EROWA” Chuck-Swiss |
| Magnetic Induction Oil Nozzle Base | 3R System Chuck-Swedish |
| Operation Manuals | Di-Electric Cooler |
| M.F.D (Fine Mirror Finish) | Electric Oil |
| X, Y, Z Axis Linear Scales (1μm) | Permanent Magnetic Chuck |
| Automatic Fire Extinguisher | |
| Charge Coupled Device (CCD) |
